What is Dynamic Line Rating (DLR)? A Complete Guide to Real-Time Grid Optimization

Dynamic line rating

Dynamic Line Rating (DLR) is a transformative grid technology that enables transmission system operators and utilities to determine the true, real-time capacity of overhead power lines based on actual environmental and operational conditions, rather than relying on conservative fixed assumptions.

In traditional power systems, transmission lines are assigned static ratings that assume worst-case weather scenarios, such as high ambient temperature, low wind speed, and maximum solar radiation. While this ensures safety, it significantly underutilizes the physical capacity of transmission infrastructure, leaving valuable headroom unused even when conditions are favorable.

DLR fundamentally changes this paradigm by introducing continuous monitoring and dynamic calculation of line capacity. Instead of assuming the worst, it measures or models real conditions such as wind cooling effects, conductor temperature, solar heating, and line sag to determine how much current a line can safely carry at any given moment.

This allows utilities to unlock latent capacity in existing assets, often increasing transmission capability by 10% to 40% without any physical upgrades. In a world where electricity demand is rising rapidly and infrastructure expansion is constrained by cost, regulation, and environmental concerns, this capability is not just beneficial but essential.

The relevance of DLR becomes even more critical when considering the current state of power systems globally. Many grids are operating close to their thermal and stability limits due to increasing load demand, aging infrastructure, and the growing penetration of renewable energy sources.

In Europe, transmission system operators are already using advanced monitoring and dynamic line rating to address grid congestion and integrate renewable energy at scale. Dynamic Line Rating is already being deployed by transmission system operators in Europe to increase grid capacity and accelerate renewable integration.

For example, Enline has implemented its Dynamic Line Rating technology in collaboration with transmission system operators such as REN in Portugal and TenneT, enabling real-time monitoring of transmission lines and unlocking additional capacity without the need for new infrastructure.

These projects demonstrate how DLR can safely increase line utilization under favorable environmental conditions, reduce congestion, and support higher integration of renewable energy into the grid. These deployments have shown that favorable weather conditions, such as strong winds, can significantly increase line capacity by enhancing conductor cooling.

How DLR Works: From Static to Dynamic

To fully understand the value of Dynamic Line Rating, it is important to examine how traditional static line rating (SLR) operates and why it is inherently inefficient.

Static ratings are determined using conservative engineering assumptions designed to ensure that transmission lines never exceed thermal limits under worst-case environmental conditions. These assumptions typically include high ambient temperatures, minimal wind cooling, and maximum solar radiation, conditions that rarely occur simultaneously in real-world scenarios. As a result, static ratings often underestimate the actual capacity of transmission lines for the majority of operating hours.

Dynamic Line Rating replaces these assumptions with real-time or near-real-time data inputs. The core principle behind DLR is the thermal balance of the conductor. When electrical current flows through a transmission line, it generates heat due to electrical resistance.

At the same time, environmental factors such as wind and ambient temperature influence how effectively that heat is dissipated. Wind, for instance, has a strong cooling effect on conductors, significantly increasing their current-carrying capacity. Conversely, high solar radiation and ambient temperatures can increase conductor temperature and reduce capacity.

DLR systems continuously evaluate this thermal balance by collecting data from sensors installed on the line or nearby weather stations. These sensors may measure conductor temperature, tension, sag, wind speed, wind direction, and solar radiation.

In some advanced implementations, digital models are used to estimate these parameters without direct physical measurement. The collected data is then processed using thermal models to calculate the maximum allowable current that will keep the conductor within safe operating limits.

Modern DLR solutions increasingly incorporate artificial intelligence and digital twin technology to enhance accuracy and predictive capabilities. A digital twin is a virtual representation of the physical grid that is continuously updated with real-time data. This allows operators to simulate different operating scenarios, forecast future capacity, and make proactive decisions. Digital twin technology has been identified as a key enabler of smart grid evolution, enabling real-time simulation, optimization, and improved decision-making in power system operations .

The transition from static to dynamic rating is not merely a technical upgrade but a fundamental shift in how grid capacity is managed. It moves the system from a conservative, assumption-based approach to a data-driven, adaptive model that reflects real-world conditions with high precision.

Real-time dynamic line rating

Real-time dynamic line rating represents the most advanced implementation of DLR, where line capacity is updated continuously based on live data streams and predictive analytics. This capability is particularly important in modern power systems, where variability and uncertainty are becoming defining characteristics due to the increasing share of renewable energy sources such as wind and solar.

Renewable generation introduces significant fluctuations in power flows across the grid. Wind speeds can change rapidly, and solar output varies with cloud cover and time of day. These fluctuations create dynamic loading conditions on transmission lines, making static ratings even more inadequate. Real-time DLR allows operators to respond to these changes instantly, adjusting line capacity to match actual conditions and enabling more efficient utilization of the network.

In addition to real-time monitoring, advanced DLR systems provide forecasting capabilities that allow operators to anticipate future line capacity based on weather predictions and load forecasts. This predictive functionality is crucial for planning grid operations, managing congestion, and optimizing the dispatch of generation resources. For example, if a period of high wind is expected, operators can plan to transmit more power from wind farms without risking line overload.

The importance of real-time visibility in grid operations cannot be overstated. The lack of effective monitoring and control systems has been identified as a major factor contributing to grid instability and failures in several regions. In Nigeria, the absence of reliable SCADA and real-time monitoring systems has significantly hindered grid management and increased the frequency of system collapses . Real-time DLR directly addresses this gap by providing continuous situational awareness and enabling faster, more informed decision-making.

Dynamic line rating for electric utilities

For electric utilities, the adoption of Dynamic Line Rating represents a strategic opportunity to improve operational efficiency, enhance reliability, and defer costly infrastructure investments. One of the most immediate benefits of DLR is the ability to increase transmission capacity without building new lines. Constructing new transmission infrastructure is often a complex and time-consuming process involving regulatory approvals, environmental assessments, and significant capital expenditure. DLR provides a faster and more cost-effective alternative by maximizing the use of existing assets.

In addition to increasing capacity, DLR improves grid reliability by enabling better monitoring and control of transmission lines. By continuously tracking conductor conditions, utilities can detect potential issues such as overheating or excessive sag before they lead to failures. This proactive approach reduces the risk of outages and improves overall system stability. It also supports better maintenance planning by providing insights into the actual operating conditions of assets.

Another critical benefit of DLR is its role in facilitating the integration of renewable energy. Renewable generation is often located far from load centers, requiring efficient transmission to deliver power to consumers.

However, transmission constraints frequently limit the amount of renewable energy that can be integrated into the grid. DLR helps alleviate these constraints by increasing the available capacity of existing transmission lines, allowing more renewable energy to be transmitted without curtailment.

The economic impact of improved grid efficiency is significant. Power outages and grid instability have been shown to cause substantial economic losses and disrupt daily life, particularly in regions with unreliable power systems. In Nigeria, frequent grid failures have been linked to infrastructure deficiencies, poor maintenance, and inadequate monitoring, resulting in widespread economic and social consequences . By enhancing grid efficiency and reliability, DLR contributes to economic stability and supports sustainable development.

DLR vs. AAR: Key Differences

Enline dynamic line rating

Enline’s Dynamic Line Rating solution represents a next-generation approach to grid optimization, combining advanced sensing, artificial intelligence, and digital twin technology to deliver comprehensive visibility and control over transmission networks. Unlike traditional DLR systems that focus primarily on measurement, Enline’s solution emphasizes intelligence, prediction, and system-wide optimization.

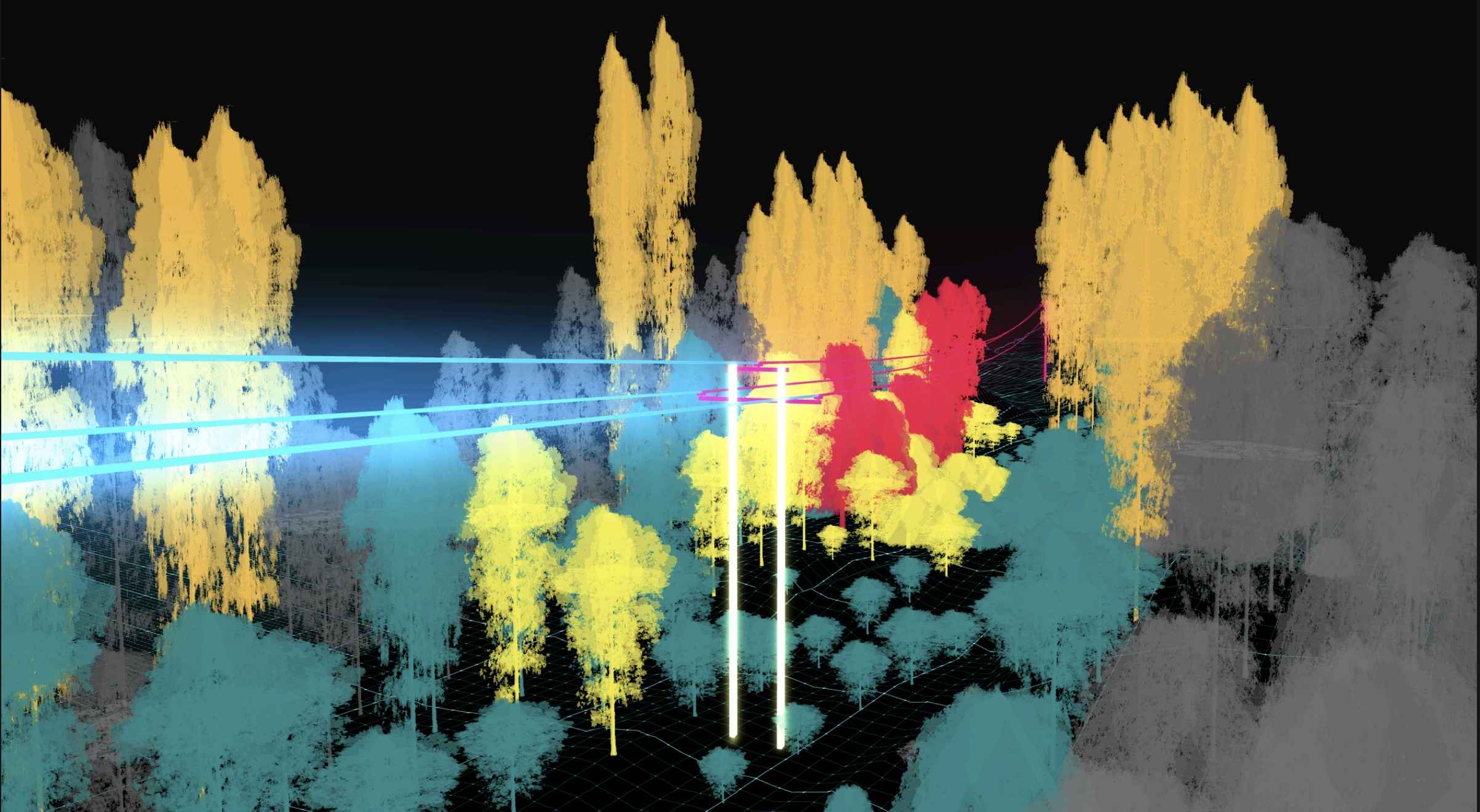

At the core of Enline’s approach is the use of digital twins to create a real-time virtual model of the grid. This model integrates data from sensors, weather forecasts, and operational systems to provide a holistic view of grid conditions. By continuously updating this model, Enline enables utilities to simulate different scenarios, predict future capacity, and optimize operations in real time.

Another key feature of Enline’s solution is its non-invasive deployment. Traditional DLR systems often require extensive hardware installation on transmission lines, which can be costly and disruptive. Enline’s approach minimizes these requirements, allowing for faster and more scalable implementation. This makes it particularly suitable for utilities in emerging markets, where cost and deployment complexity are critical considerations.

Enline also integrates seamlessly with existing utility systems such as SCADA, Energy Management Systems (EMS), and Advanced Distribution Management Systems (ADMS). This ensures that DLR insights can be incorporated into operational workflows, enabling automated decision-making and real-time optimization.

What Makes Enline’s DLR Solution Different

Ahh got it — you want it structured like clear, numbered differentiators with headings. This is much stronger for readability and SEO.

Here’s the improved version:

What Makes Enline’s DLR Solution Different

1. Actionable Intelligence, Not Just Data

What sets Enline apart from other DLR providers is its focus on delivering actionable intelligence rather than just raw data. While many solutions provide basic measurements of line conditions, Enline goes further by analyzing this data to generate insights and recommendations that directly support operational decisions.

2. AI-Powered Prediction and Optimization

The use of artificial intelligence enables Enline to identify patterns, predict future conditions, and optimize grid performance in ways that are not possible with traditional methods. For example, the system can forecast line capacity based on weather trends, allowing operators to plan ahead and avoid congestion. It can also detect anomalies and potential risks, enabling proactive maintenance and reducing the likelihood of failures.

3. Network-Wide Optimization

Another distinguishing factor is Enline’s emphasis on network-wide optimization rather than single-line monitoring. Instead of focusing on individual lines, the solution considers the entire grid, enabling coordinated, system-level decision-making that maximizes overall efficiency. This holistic approach is particularly important in complex power systems, where changes in one part of the network can have cascading effects elsewhere.

4. A Complete Platform for Intelligent Grid Management

Ultimately, Enline’s Dynamic Line Rating solution is not just a tool for monitoring transmission lines but a comprehensive platform for intelligent grid management. By combining real-time data, predictive analytics, and system-wide optimization, it enables utilities to operate their networks more efficiently, reliably, and sustainably.

5. Non-Invasive and Scalable Deployment

Unlike traditional DLR systems that often require complex hardware installations on transmission lines, Enline’s solution is designed for non-invasive deployment. This reduces installation time, minimizes operational disruption, and allows utilities to scale quickly across their network. As a result, grid operators can start realizing value faster while avoiding the high costs and logistical challenges associated with conventional monitoring systems.

Conclusion

Dynamic Line Rating is no longer an emerging concept but a critical technology for modern grid optimization. As power systems become more complex and the demands placed on them continue to grow, the limitations of static line ratings are becoming increasingly apparent. DLR provides a practical and effective solution by enabling real-time, data-driven management of transmission capacity, unlocking hidden potential in existing infrastructure.

From improving reliability and reducing costs to enabling renewable integration and supporting economic development, the benefits of DLR are far-reaching. When combined with advanced technologies such as digital twins and artificial intelligence, it becomes a powerful tool for transforming the way grids are operated and managed.

For utilities and grid operators, the question is no longer whether to adopt Dynamic Line Rating but how quickly they can implement it to stay ahead in an evolving energy landscape.
