Dynamic Line Rating for TSOs to Reduce Overload Risks in Real Time

Transmission System Operators (TSOs) are under increasing pressure to deliver higher reliability, efficiency, and capacity without expanding existing infrastructure. As renewable generation grows and grid demand surges, traditional static line ratings have become a limiting factor—restricting power flow, creating congestion, and leaving significant network potential unused.

Dynamic Line Rating (DLR) provides a smarter, data-driven approach. By calculating real-time ampacity based on actual weather and conductor conditions, DLR enables TSOs to safely optimize grid capacity and reduce overload risks in real time. Unlike static ratings that rely on fixed conservative limits, DLR reflects the true operating state of the network, helping operators balance safety with performance.

Enline’s AI-powered DLR solution builds on this principle, offering predictive visibility, seamless SCADA/EMS integration, and validated field results. This article explores how Dynamic Line Rating enables TSOs to manage overload risk proactively, unlock hidden capacity, and advance toward a more intelligent and resilient grid.

What Is Dynamic Line Rating and How Does It Work?

Dynamic Line Rating (DLR) is a method to determine the real-time thermal capacity (ampacity) of an overhead line or transmission line based on actual environmental and operational conditions rather than conservative static assumptions.

Traditional line ratings are usually calculated under worst-case ambient assumptions (highest temperature, low cooling wind) and remain fixed over time. DLR, by contrast, adapts continuously using inputs such as ambient temperature, wind speed and direction, solar radiation, conductor characteristics, and sometimes sag or tension data.

Enline’s approach typically uses a sensorless DLR methodology: rather than deploying sensors along every span, Enline uses virtual weather inputs and a digital twin model to simulate the behavior of lines under current and forecasted conditions.

Digital twin modelling refers to building a simulated twin of the physical line in software, where thermodynamic, electromagnetic, and mechanical equations simulate how the conductor warms, cools, sags, and carries current. Enline calibrates these models using field data or historical conditions. The output is a per-span DLR value (real time and forecast up to 7 days ahead) that operators can use to adjust flows safely.

Because DLR leverages real data and simulation, it can unlock higher capacity under favorable weather and safely reduce it when conditions deteriorate, thereby reducing risk of overload.

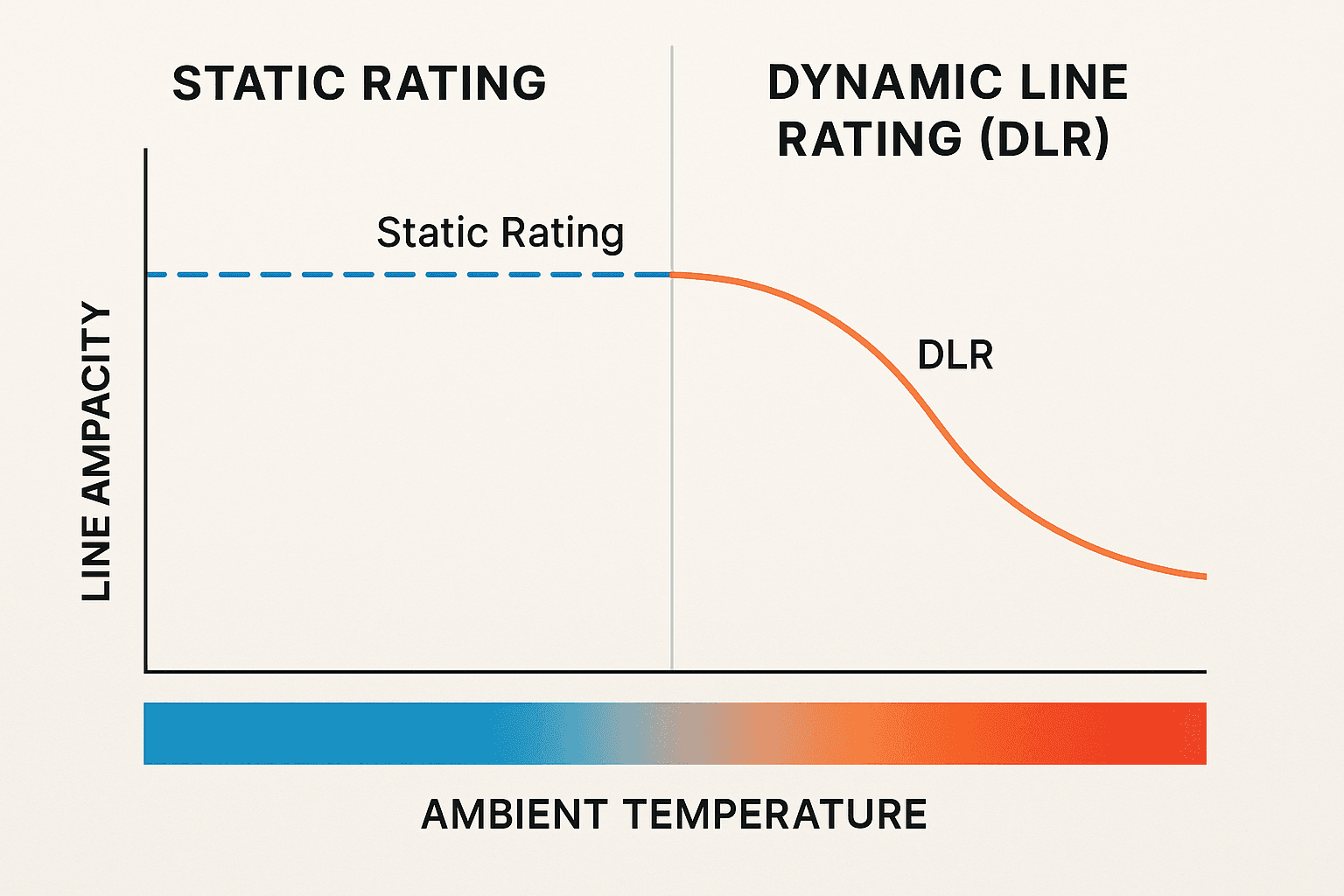

DLR vs Static Ratings: Which Captures More Line Capacity?

Static ratings are computed assuming worst-case weather conditions, minimal cooling, and high ambient temperature. Because they must guard against worst-case scenarios, static ratings tend to be conservative. That means in many hours the line is operating far below its true feasible capacity. This conservative posture arises from needing universal safety across climates, seasons, and weather extremes.

DLR adapts to actual conditions. In times of lower ambient temperature, wind cooling, or moderate solar heating, the conductor may be able to carry more current than the static limit. Thus, DLR can allow higher throughput safely.

Because DLR can step down when conditions deteriorate (e.g. high ambient temperature, low wind), it dynamically enforces limits, avoiding risky overloading. Comparison studies in the literature repeatedly show that DLR outperforms static ratings especially in variable weather regimes. For example, a comparative review shows DLR combined with other flexibility options can raise available transfer capacity significantly.

Situations When DLR Adds the Most Value

DLR gives the largest gain when:

• Ambient temperature is significantly lower than worst-case assumptions

• Wind cooling is present

• Solar radiation is moderate or fluctuating

• Load is approaching static limits and more margin is needed

• The line is in a climatically variable region

These are conditions where static ratings leave unused capacity on the table, which DLR can safely exploit.

However, DLR must manage forecasting error, data latency, and modeling uncertainties. Systems must include buffer margins, conservative fallback modes, and real validation. Enline’s calibration and field validations are crucial in ensuring safety and trust in the DLR output.

DLR for TSOs to Reduce Overload Risk in Real Time

TSOs must maintain system security, keeping line currents within their thermal and mechanical limits. Unexpected changes  such as generation ramp, load shifts, or ambient weather swings can push lines to or beyond safe limits. Under static ratings, TSOs must operate conservatively, limiting flows even when actual conditions would allow more. That leads to congestion, underutilized assets, and higher costs.

By contrast, DLR offers the ability to dynamically adjust limits, offering "headroom" when conditions permit and reducing risk when conditions worsen. This ability to hedge against overload risk in real time is especially valuable in grids with large renewable penetration, fluctuating loads, or constrained corridors.

Enline’s collaboration with Red Eléctrica de España (REE) began around 2021, with the goal of applying DLR across parts of REE’s transmission network, especially in regions with high seasonal load stress, such as the Balearic Islands (e.g. Ibiza).

The DLR deployment targeted 66 kV lines facing congestion during peak tourist months, with challenges including vegetation, terrain variation, high ambient temperature, and sag constraints.

REE tasked Enline to compute maximum safe capacity in varied real world conditions, in order to avoid unnecessary reconductoring or line uprates.

Implementation Steps for TSOs Adopting DLR with Enline

Pilot and Assessment Phase

1. Select candidate lines — Typically lines with congestion, high utilization, or heavy load swings. In REE’s case, Enline and REE selected 66 kV lines with tourism-driven loads.

2. Collect baseline data and historical records — Includes conductor specs, meteorological history, loading history, maintenance records.

3. Build digital twin models — Simulate line behavior over time under varying conditions; calibrate with known data or measurement if available.

4. Pilot deployment — Implement sensorless DLR (or limited sensors), run side by side with static control to validate predictions and build confidence.

This phase helps mitigate risk and build operational trust.

Integration & Operationalization

5. SCADA / EMS / Dispatch integration — Feed DLR outputs into control and dispatch systems so that real limits are automatically enforced.

6. Operator training and workflows — Train operations staff and define fallback procedures, alerting, and decision logic.

7. Scaling across corridors — Roll out DLR to additional lines and regions once pilot proves reliability.

Enline’s implementation in Spain was designed for fast rollout (no downtime) and adaptability to local regulation.

Continuous Calibration and Governance

• Periodic validation against field sensor data to detect drift

• Maintain fallback static/AAR ratings for redundancy

• Version control, audit logs, and methodology transparency

• Buffer margins and safety ramping to reduce risk from abrupt environmental changes

With proper governance, DLR becomes a trusted operational tool rather than an experimental add-on.

REE tasked Enline to compute maximum safe capacity in varied real world conditions, in order to avoid unnecessary reconductoring or line uprates.

Challenges & Mitigation Notes for Enline DLR Deployments

Data Quality, Forecasting, and Model Drift

DLR depends on accurate meteorological inputs (wind, temperature, solar) and reliable conductor modeling. Errors or latency in those inputs can skew results. Enline mitigates this through redundant data sources, continuous calibration, and safety buffer margins. In the REE deployment, accuracy was benchmarked and validated continuously against field sensor measurements (~95 %+).

Integration with Legacy Systems and Operational Culture

Many TSOs have legacy EMS or SCADA systems not designed for variable constraints. Successfully integrating DLR requires modular APIs, control logic modifications, operator training, and robust fallback strategies. Enline supports these integration challenges as part of deployment in Spain.

Regulatory & Transparency Requirements

Operators may need to justify rating methodology to regulators or stakeholders. Enline’s platform supports auditability, versioning, and documented algorithm logic. In the REE case, algorithm parameterization considered Spanish regulations.

Safety and Worst-Case Scenarios

DLR systems must avoid unplanned overloading under sudden weather shifts. To guard against that, Enline uses conservative buffers, fallback static limits, gradual ramping of allowed current, and validation loops. These approaches help manage the risk of forecasting errors or unmodeled anomalies.
